스마트 테크노 장봉 레일형 [보충자료]
|
|
|
|
|
|
 Main Parts Specification
| |
|
P-No |
Name |
Material |
Size |
Process |
Significance |
Etc |
|
1 |
Socket |
insulator Stone |
E-26Base |
double layer |
KS Standard / thermal resistance wire |
- |
|
2 |
Body |
Steel |
53 x 43 x 1t |
Powder Coating |
pure color ( White / Black )
*) not recycled Powder |
- |
|
3 |

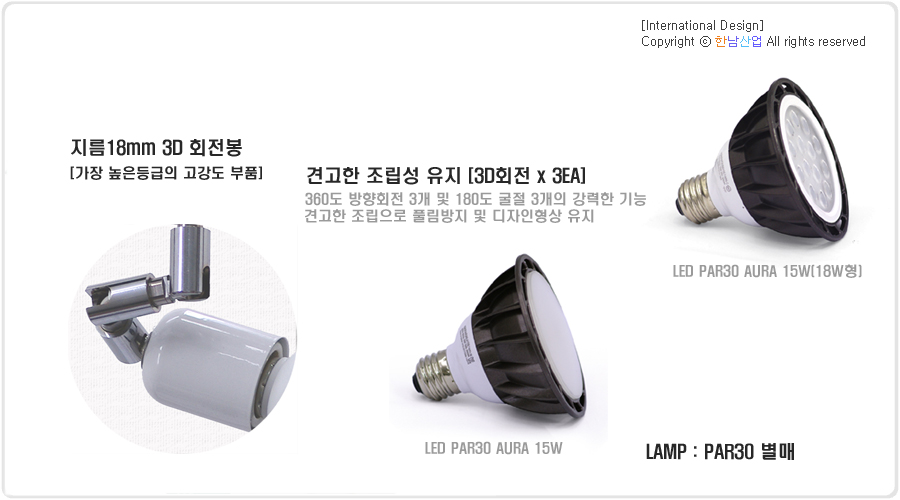

uni-Joint |
Si-copper |
18 x 45 x 3EA |
chromium electro-plating |
3D Space movement
( 360-degree Rotation and 180-degree angle ) |
- |
|
4 |
Rail Flug |
ABS |
35 x 25 x 55 |
injection molding |
1t copper terminal socket
8mm Samson Bolt |
- |
|
5 |
Pipe |
Steel |
9.6 x 1t
20mm ~ 2,000mm(L) |
Powder Coating |
pure color ( White / Black )
*) not recycled Powder |
- |
|
6 |
Bearing |
SUS 316 |
9.7 x 10 |
polished |
for protection against the looseness of flug mechanical motion
for effective rotation of track flug |
- |
|
|
* Leave other 9 parts out of view | | |
|
|
|
|
Significance of Goods | |
|
No |
Basic Data |
Significance |
Etc |
|
1 |
Size |
Setting Range ( Width : 100 ~ 290 / Height : 90 ~ 1,000 / Deep : 100 ~ 290 ) |
- |
|
2 |
Mechanical |
3D Space Control ( 360-degree Rotation : 4 Point / 180-degree angle control lever : 3 Point) |
- |
|
3 |
Durability |
durable joint for repeated angle setting or rotation of mecanical motion / about 300 repeatition for 1point |
- |
|
|
* PS) copper is no coated material / all no recycled material | | |
|
* refer to hannam design data. | |
| |
|
|
|
|
|
|
|
|
|
스마트 테크노 장봉 레일형 [보충자료]
|
|
|
|
|
|
Main Parts Specification | |
|
P-No |
Name |
Material |
Size |
Process |
Significance |
Etc |
|
1 |
Socket |
insulator Stone |
E-26Base |
double layer |
KS Standard / thermal resistance wire |
- |
|
2 |
Body |
Steel |
53 x 43 x 1t |
Powder Coating |
pure color ( White / Black )
*) not recycled Powder |
- |
|
3 |
uni-Joint |
Si-copper |
18 x 45 x 3EA |
chromium electro-plating |
3D Space movement
( 360-degree Rotation and 180-degree angle ) |
- |
|
4 |
Rail Flug |
ABS |
35 x 25 x 55 |
injection molding |
1t copper terminal socket
8mm Samson Bolt |
- |
|
5 |
Pipe |
Steel |
9.6 x 1t
20mm ~ 2,000mm(L) |
Powder Coating |
pure color ( White / Black )
*) not recycled Powder |
- |
|
6 |
Bearing |
SUS 316 |
9.7 x 10 |
polished |
for protection against the looseness of flug mechanical motion
for effective rotation of track flug |
- |
|
|
* Leave other 9 parts out of view | | |
|
|
|
|
Significance of Goods | |
|
No |
Basic Data |
Significance |
Etc |
|
1 |
Size |
Setting Range ( Width : 100 ~ 290 / Height : 90 ~ 1,000 / Deep : 100 ~ 290 ) |
- |
|
2 |
Mechanical |
3D Space Control ( 360-degree Rotation : 4 Point / 180-degree angle control lever : 3 Point) |
- |
|
3 |
Durability |
durable joint for repeated angle setting or rotation of mecanical motion / about 300 repeatition for 1point |
- |
|
|
* PS) copper is no coated material / all no recycled material | | |
|
* refer to hannam design data. | |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|

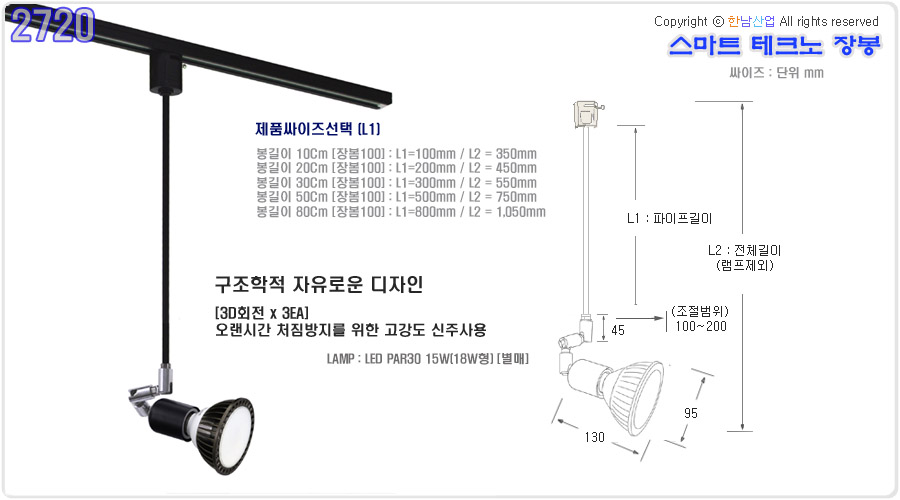

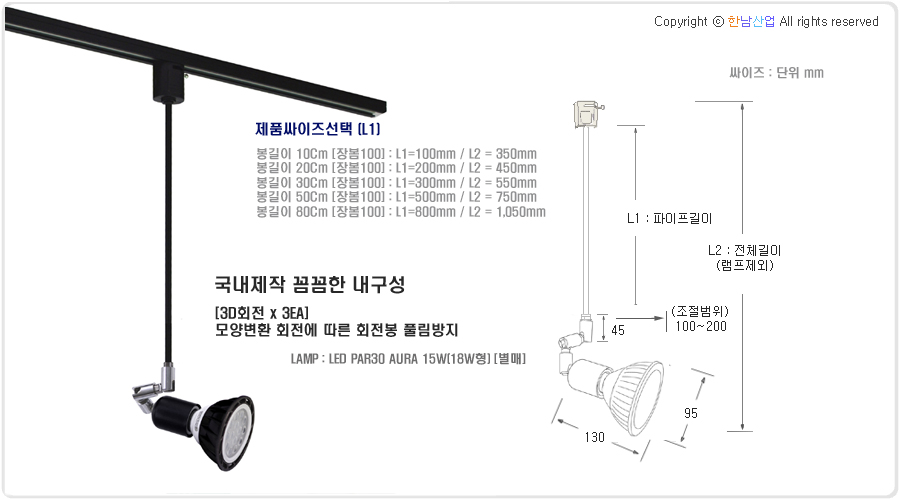

스마트 테크노 장봉 레일형
봉길이800mm [전체길이1050mm] |
|
|
상품이 장바구니에 담겼습니다.
( 목록은 상품페이지내 확인 가능합니다. )
|
|
|
|
|
|
스마트 테크노 장봉 레일형
봉길이800mm [전체길이1050mm] |
|
|
|
상품이 장바구니에 추가 되었습니다.
|
|
|
|
|
|
|
 제 품 명 |
: 스마트 테크노 장봉 레일형 |
| 보증기간 |
: |
|
|
|
|
*) 접수처 : 한남산업 또는 제품구입처
|
|
|
|
|
|
|
|
|
|
| 제 품 명 |
: 스마트 테크노 장봉 레일형 |
| 기본배송 |
: 5,000원 (기본 배송비)
|
|
|
|
| * 추가배송비안내 : | |
| 제품 특성상 묶음포장 또는 소포장이 불가한 상품. | |
| 추가배송비 - 기본배송비 = 최종배송비. | |
| 추가배송 미표기상품은 묶음포장. | |
|
|
|
|
|
|
|
|
결제를 바로 진행 하시겠습니까 .
바로 구매 하시겠 습니까 ?
|
|
|
|
|
_ 6500K . 2700K
_ 6500K . 3500K
KS 및 고효율 SMPS . [ A/S 및 품질보증 2년 ]
_ 5700K . 2700K
